TK0158

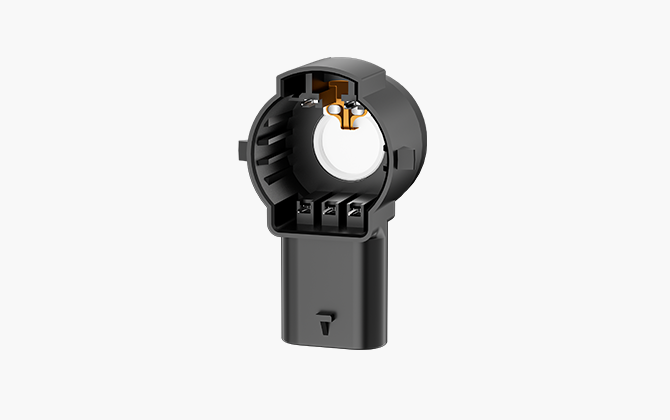

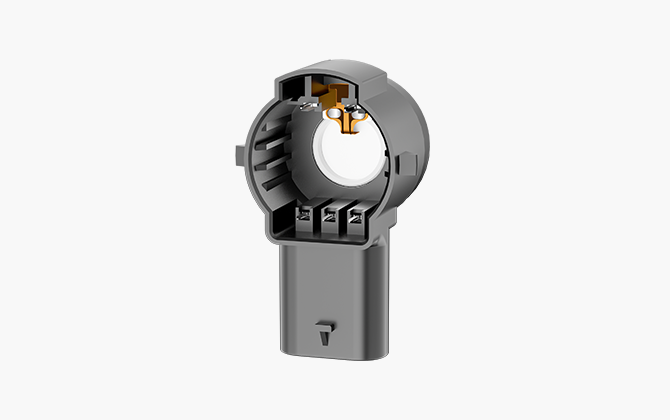

Assembled Parking Transducer
Product model: TK0158
Assembled Parking Transducer is the core component of Parking System. It uses ultrasound to measure the distance between the vehicle and the front and rear obstructions.
Product Features
  • - Integrated design, easy to install
  • - High sensitivity
Product Specifications

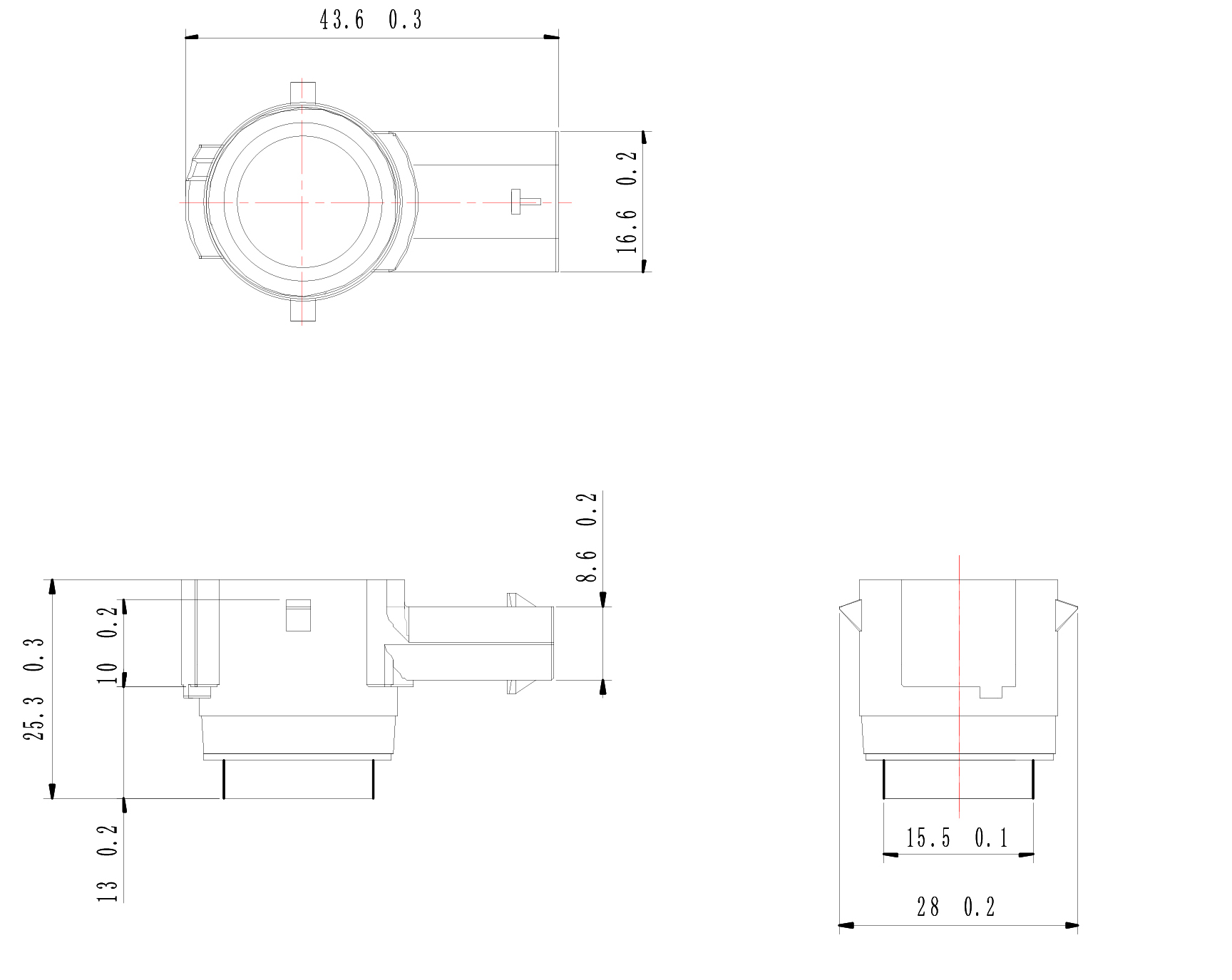

- Dimensions



- Specifications


Model#

TK0158

Frequency

55.5±1.0 KHz

Directivity

Horizontal:90°
Vertical:45°

Ring time

≤1.50 mS

Operating temperature

-40°C~+85°C


Applications
  • - Parking Distance Measurement System (PDC)

  • -Reversing aid system
