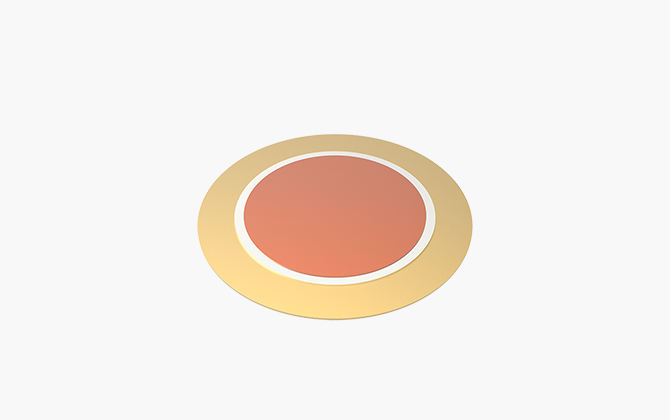

Haptic Feedback Actuator
Product model: HM0873
Haptic feedback actuator make use of the positive and negative piezoelectric effects of piezoelectric ceramics. When the driving voltage is loaded to it, the ceramic will produce mechanical deformation, so it causes vibration. It consists of piezoelectric ceramic and metal substrate.
Product Features
- - High sensitivity and stable performance
- - Low power consumption
- - Better dust/ water proof
Product Specifications

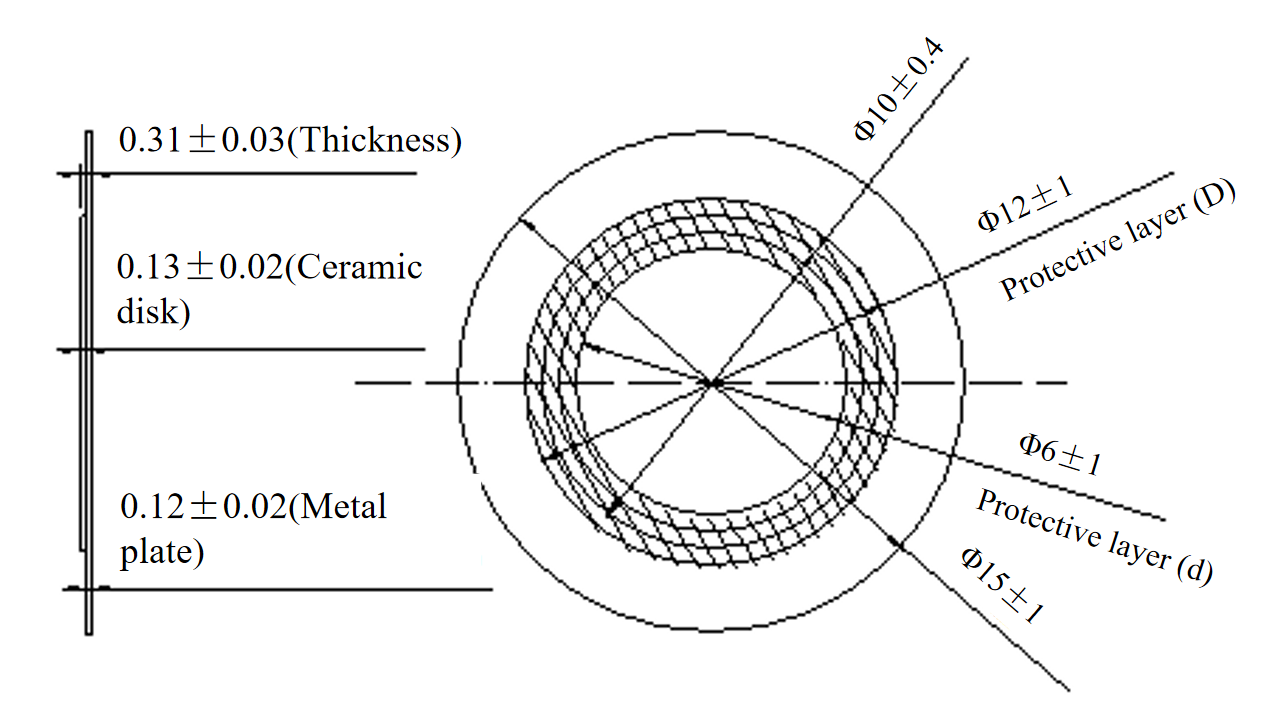

- Dimensions
- Specifications
Model# | HM0873 |
Layer(s) of Ceramic | Single Layer |
Size | ∮15*0.25mm |
Operating Voltage | -100V ~ +200V(15ms max) |
Displacement | 55um±10%, p-p(-100~+200V) |
Free Capacitance | 7±20%nF |
Applications
- Display touch panel
- Car central control screen
- Switch
- Interior decoration
- Touch screen of various household appliances
