MU0002
Products
MU0002

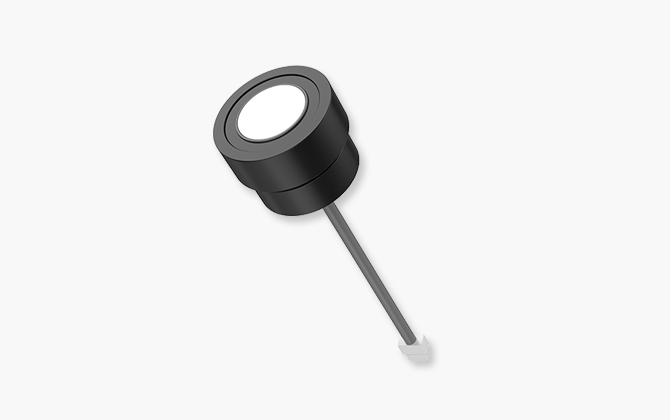

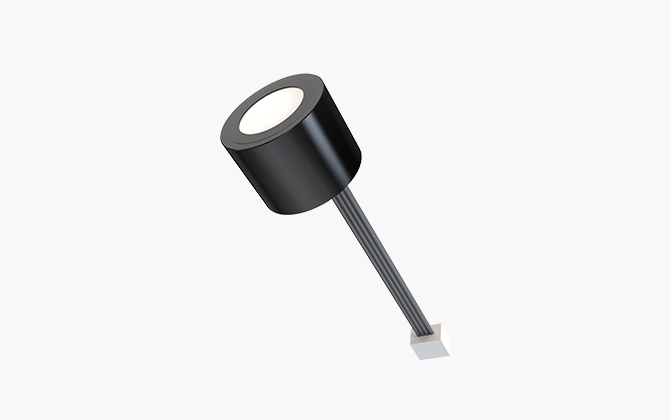

300K Ultransonic Sensor
Product model: MU0002
300K ultrasonic sensor transmits high-frequency ultrasonic wave to achieve high-precision detection in a short distance. The product is applicable to the material identification system of the sweeping robot, as well as the double sheet detection and paper counting of printing machines, scanners, ATM machines and other equipment.
Product Features
  • - Measuring accuracy up to millimeters
  • - IP67 protection class
  • - High reliability
Product Specifications

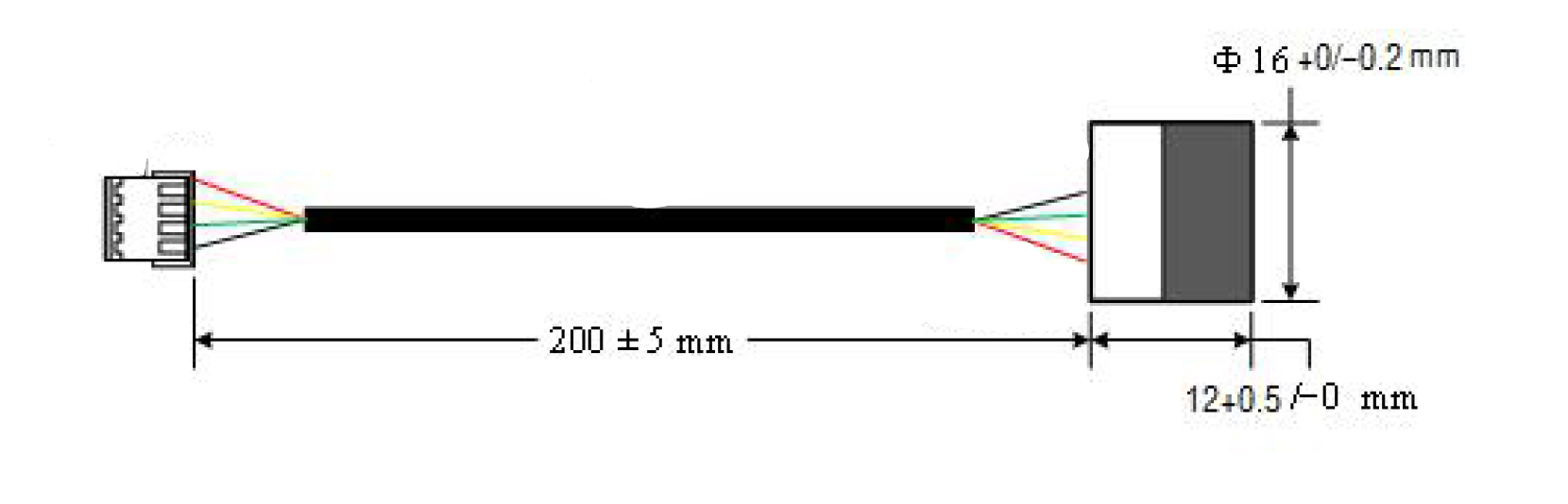

- Dimensions



- Specifications


Model#

MU0002

Nominal drive frequency

300 ±10kHz

Communication mode

UART

Detection distance

25~45mm

Installation height

30mm

Driving voltag

5±0.3V

Operating temperature

-10℃ ~ +60℃


Applications

- Sweeping robot

- Printing machines

- Scanners

- ATM machines
