HT0020
300K Ultransonic Sensor
Product model: HT0020
300K ultrasonic sensor transmits high-frequency ultrasonic wave to achieve high-precision detection in a short distance. The product is applicable to the material identification system of the sweeping robot, as well as the double sheet detection and paper counting of printing machines, scanners, ATM machines and other equipment.
Product Features
  • - Measuring accuracy up to millimeters
  • - IP67 protection class
  • - High reliability
Product Specifications

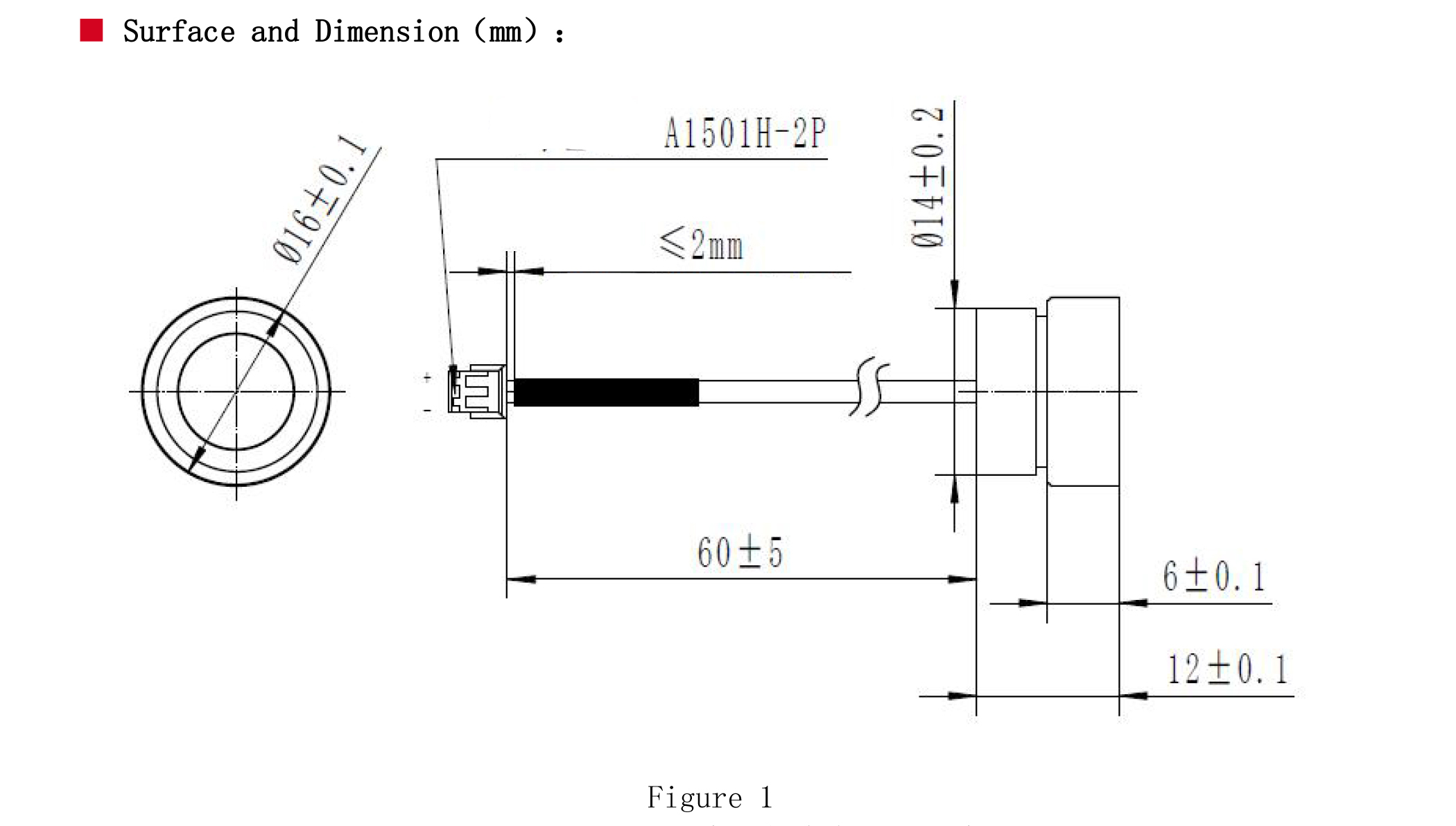

- Dimensions



- Specifications


Model#

HT0020

Nominal drive frequency

295±15kHz

Communication mode

-

Detection distance

-

Installation height

30mm

Driving voltag

120Vp-p(MAX)

Operating temperature

-40℃~+70℃


Applications

- Sweeping robot

- Printing machines

- Scanners

- ATM machines
