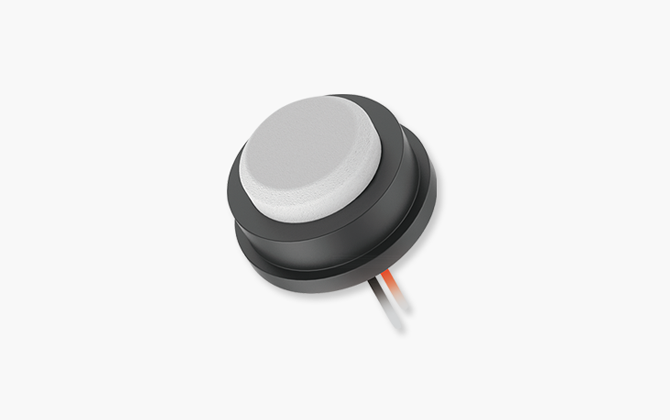

Flow Transducer For Gas Meters
Product model: HT0008
Transducer for Ultrasonic Gas Meter is the core component of ultrasonic gas meter, which is a kind of ultrasonic transducer with gas medium. This gas flow transducer has utilized novel acoustic matching material to enhance the transmission ability of ultrasonic signal in gas medium.
Product Features
- - Stable and reliable
- - Excellent consistency
- - Advanced matching material,high sensitivity
Product Specifications

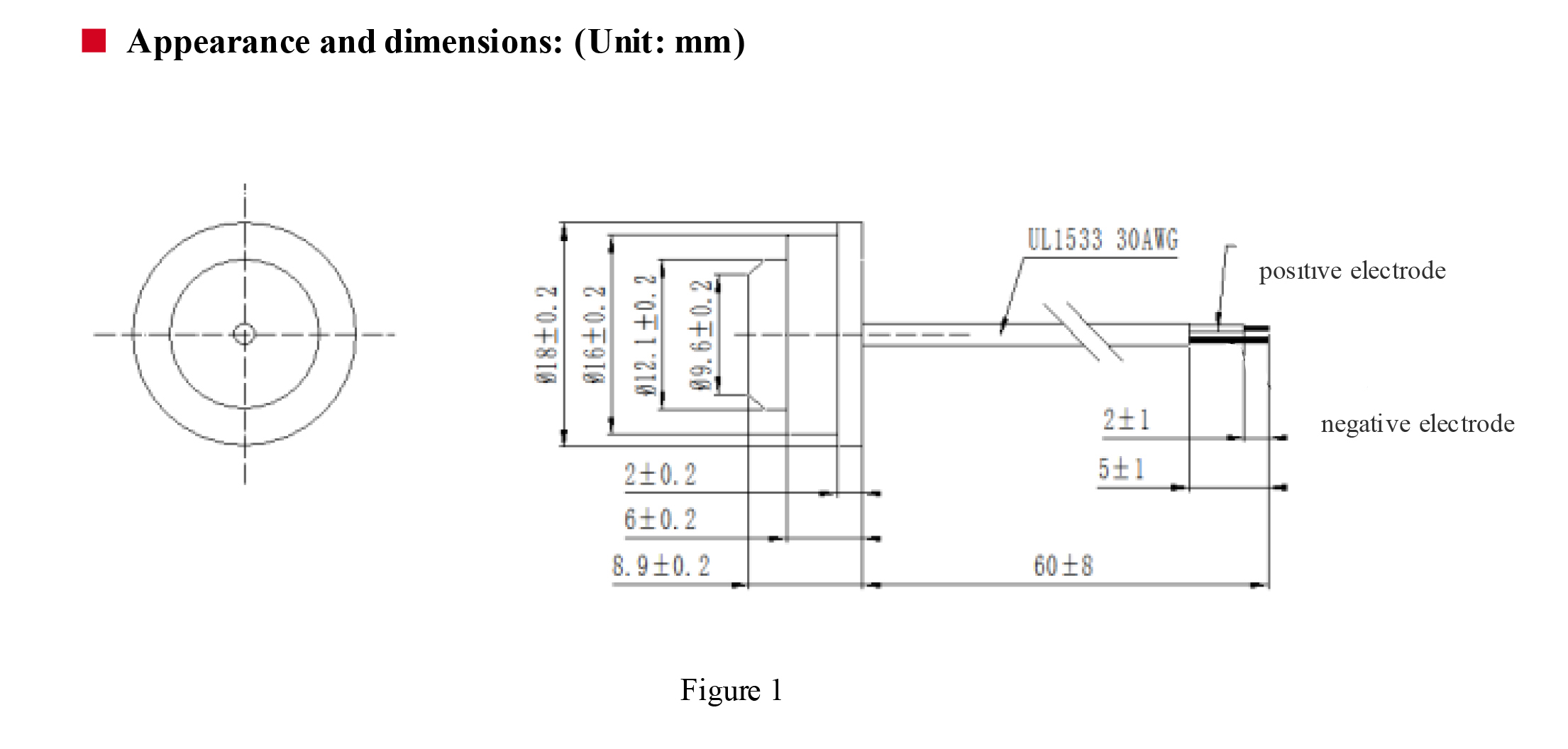

- Dimensions
- Specifications
Model# | HT0008 |
Nominal drive frequency | 225±15KHz |
Static Capacitance | 2200±20%pF |
Operating Temperature | -25°C~+70°C |
Max. endure pressure | 0.2MPa |
Applications
- Ultrasonic gas meters
