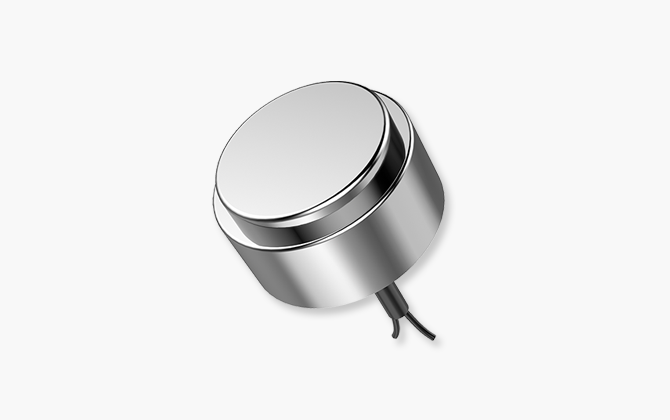

Flow Transducer For Water Meters
Product model: US0081
Transducer for Ultrasonic Water Meters is the core component of an intelligent water meter. The liquid flow speed can be calculated by measuring the change of ultrasonic speed in the pipe, so that the liquid flow volume during a certain period of time can be calculated.
Product Features
- - Good consistency
- - High stability and reliability
- - High and low temperature resistance, high pressure resistance
Product Specifications

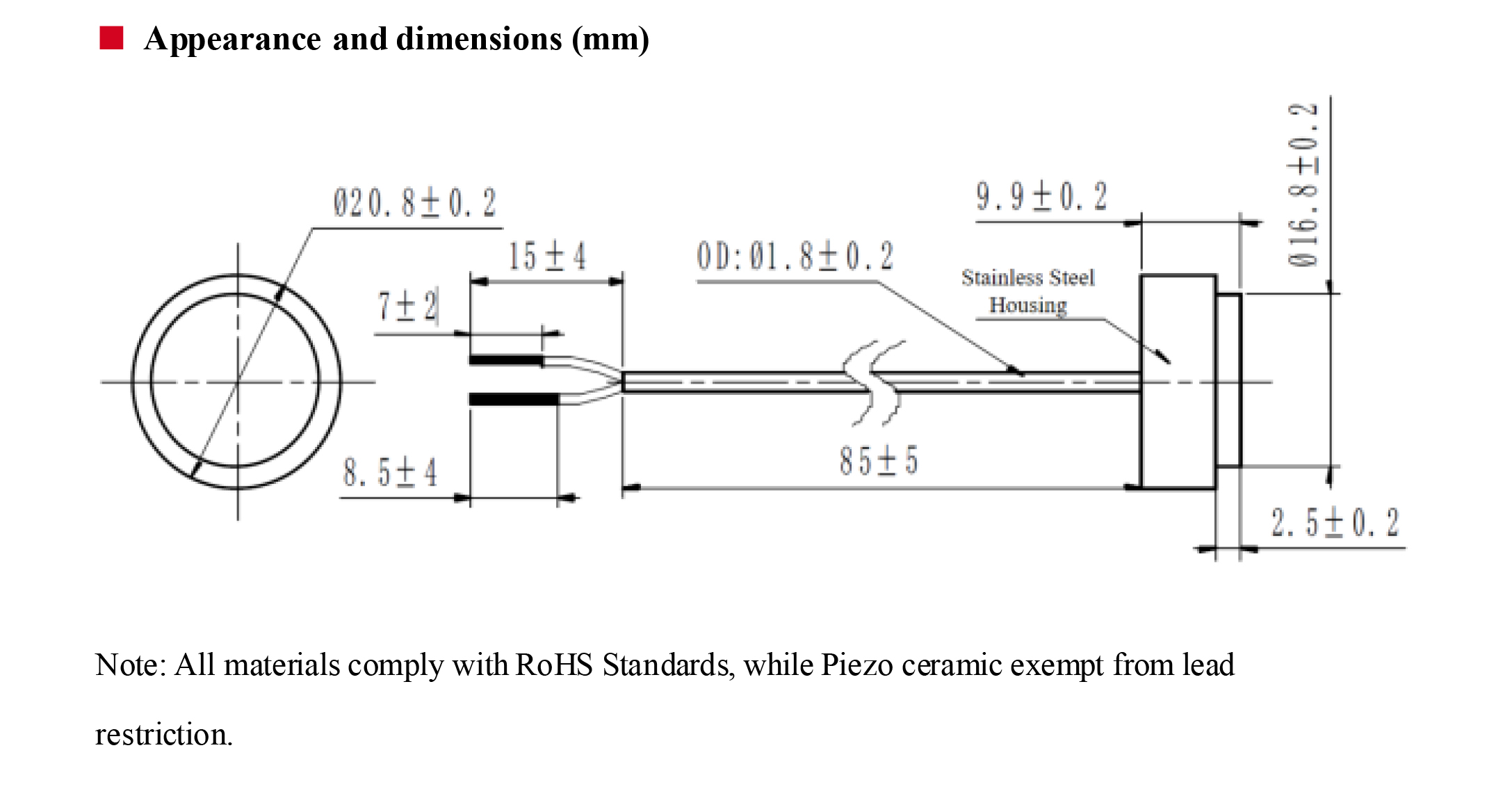

- Dimensions
- Specifications
Model# | US0081 |
Housing material | Stainless steel |
Frequency | 1MHz |
Maximum Operating Pressure | 2.5MPa |
Temperature Resistance | +0.1°C～+120 °C |
Diameter Of Transmitting Surface | 16.8mm |
Applications
- Ultrasonic water meters
- Ultrasonic Heat meters
- Industrial water measurement
