Ultrasonic AdBlue Quality Sensor
Product model: UQ0002
Ultrasonic AdBlue Quality Sensor can be used for AdBlue identification and concentration monitor based on its different transmitting speed in different liquid and differnet temperature.
The ultrasonic sensor emits the soundwave impulse to the reflector board which reflects the impulse back to the sensor, by calculating the average flight time of multiple flights can be used to identify Adblue quality.
Product Features
- - High accuracy: ≤1%
- - Good consistency
- - Adblue/high/low-temperature endurance
- - High reliability and stable
Product Specifications

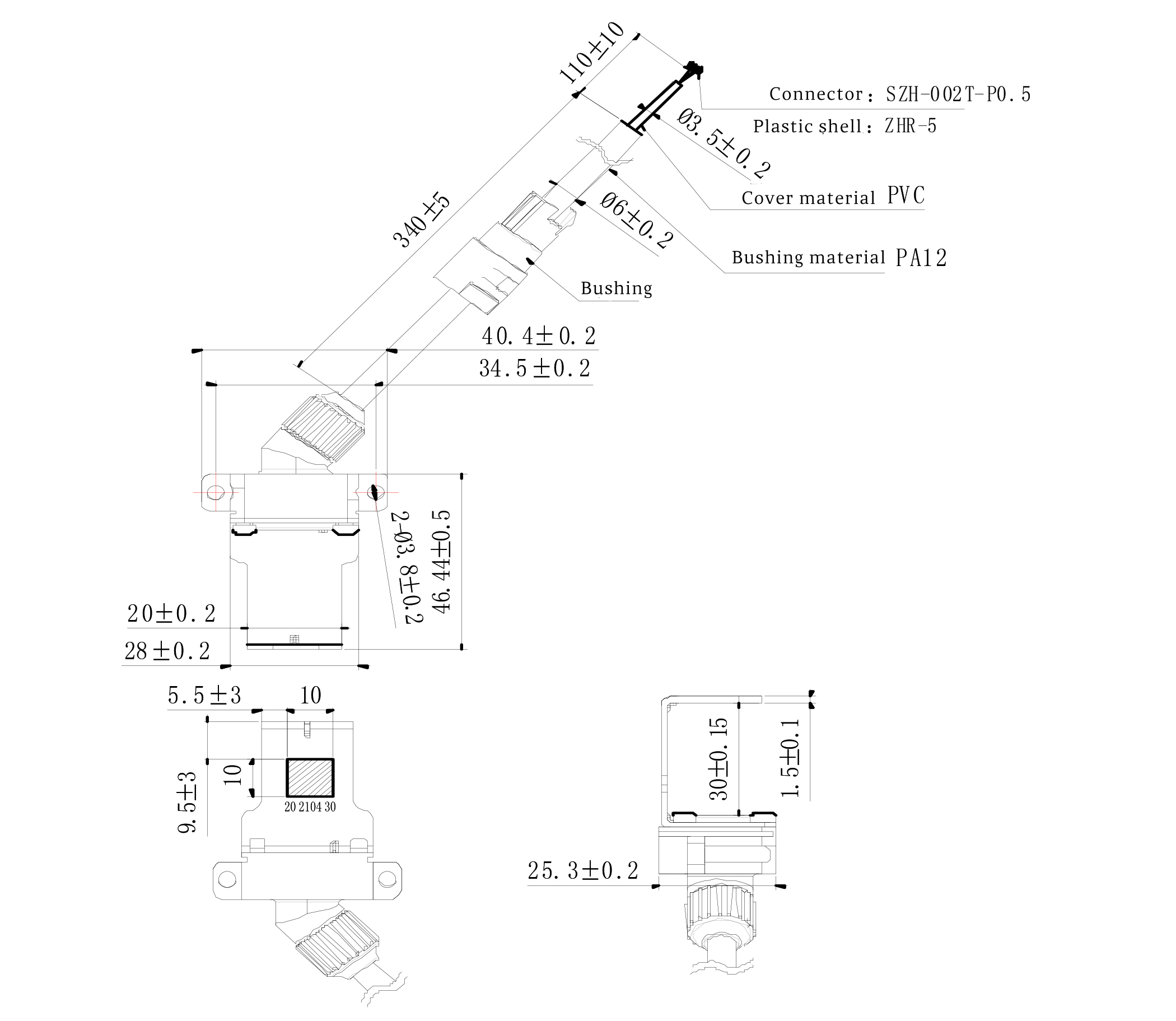

- Dimensions
Waterproof grade
- Specifications
Model# | UQ0002 |
Thick resonant frequency | 740±30KHz |
Resonant impedance | 220~400Ω |
Free capacitance | 750±20%pF |
Allowable Maximum Input Voltage | 5Vp-p |
Operating Temperatur | -10°C~+60°C |
Waterproof grade | IP67 |
Applications
-Commercial Vehicle SCR Systems
