UL0001
Products
UL0001

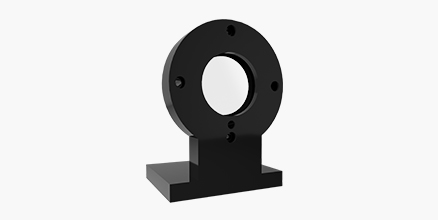

Ultrasonic Lens Cleaning
Product model: UL0001
Ultrasonic lens cleaning solutions utilize Audiowell's proprietary materials and algorithms that enable camera systems to quickly detect and use tiny vibrations to remove contaminants such as dirt, water and ice. Ultrasonic cleaning has many advantages over traditional cleaning methods, including high cleaning quality, speed, less damage, and full automation.
Product Features
  • - High cleaning quality with low dirt residues
  • - Fast cleaning speed
  • - Less damage to parts
  • - Automatic
Product Specifications

- Specifications


Model#

UL0001

Dimension

Ø8 x 0.67mm
Ø12 x 0.67mm
Ø15 x 0.67mm

Frequency

40KHz~3.5MHz

Communication Method

IIC、UART

Voltage

12V

Dewatering Efficiency

0.022ml/s

Current

100mA~2A

Slip water Eciency

8.3mm/s

Drive quiescent current

5μA

Melting Ice Time

7.9mm³/s

*Decontamination efficiency is affected by temperature, dirt size, viscosity, and mirror roughness.



Applications


  • - Lenses for industrial equipment

  • - Automotive Lenses

  • - Lenses for sports cameras and other cameras
