VU0012

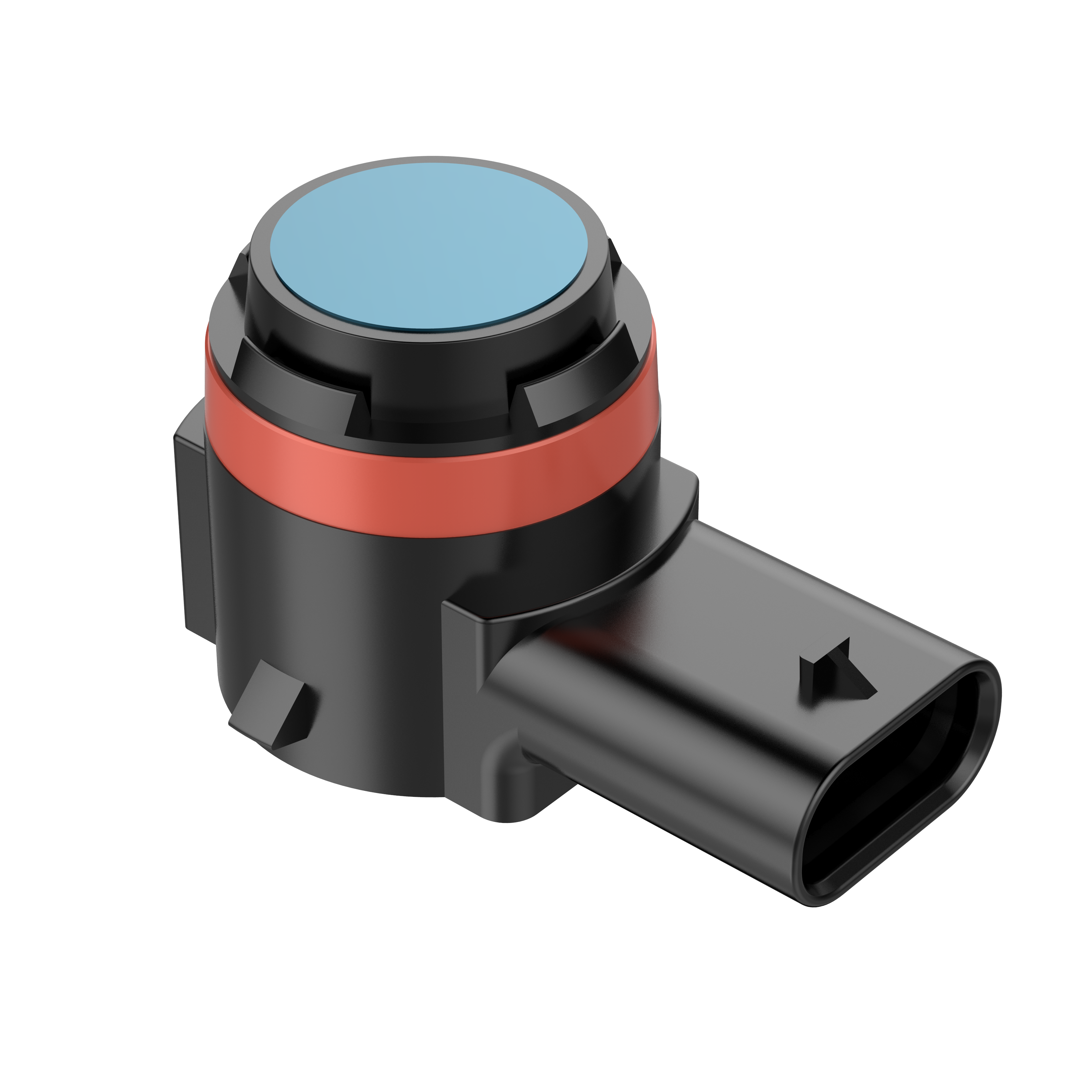

AK2 Ultrasonic Sensor
Product model: VU0012
The new generation of intelligent sensors based on ultrasonic distance measuring principle, farther distance and smaller blind area than other sensors.The product adopts the industry's advanced DSl3 communication method which can process various data synchronously at a high speed, fundamentally solving the industry problem of same-frequency interference between radar sand it is an essential intelligent perception hardware for future intelligent driving. Assembled Parking Transducer is the core component of Parking System. It uses ultrasound to measure the distance between the vehicle and the front and rear obstructions.
Product Features
  • - Long and short range (APA & UPA) fusion
  • - Codable modulation to reduce interference
  • - DSl3 interface for fast signal propagation
  • - Functional safety (ASIL B) level
Product Specifications

- Dimensions



- Specifications


Model#

VU0012

Frequency

55.5±4KHz

Detection Range

150~5500mm

Detecting Angle

Horizontal:120°
Vertical:60°

Accuracy

≤ ±3cm

Measuring Resolution

1cm

Communication Method

DSI3


Applications

- Parking Distance Measurement System (PDC)

- Auto Parking Asist (APA)

-Automated Valet Parking (AVP)
