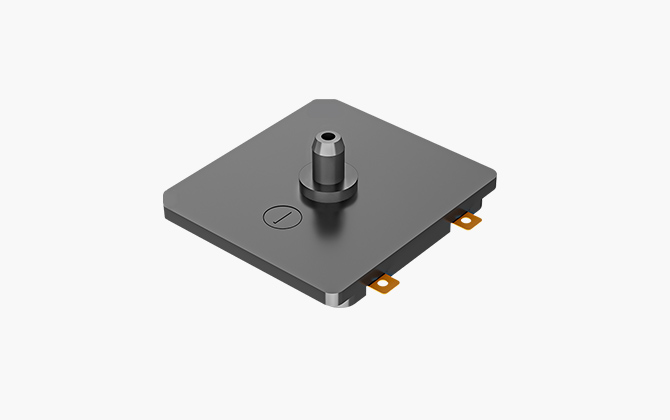

Piezo Air Pump
Product model: HQ0067-002
Piezo Air Pump is the use of piezoelectric ceramic inverse piezo electric effect made of miniature pumps, no motor, no rotating parts, piezoelectric ceramic sheet for its power drive source, in the alternating current drive, piezo electric ceramic radial shortening or elongation of the ceramic sheet, at the same time led to the elasticity of the substrate bending and deformation, so as to change the volume of the pump cavity. When the volume of the pump cavity increases, the pressure inside the cavity decreases and the gas flows into the pump cavity; when the volume of the pump cavity decreases, the pressure inside the cavity increases and the gas is squeezed out of the pump cavity.
Product Features
  • - Compact and lightweight
  • - Low power consumption and no noise
  • - Quantity of air released can be adjusted simply
Product Specifications

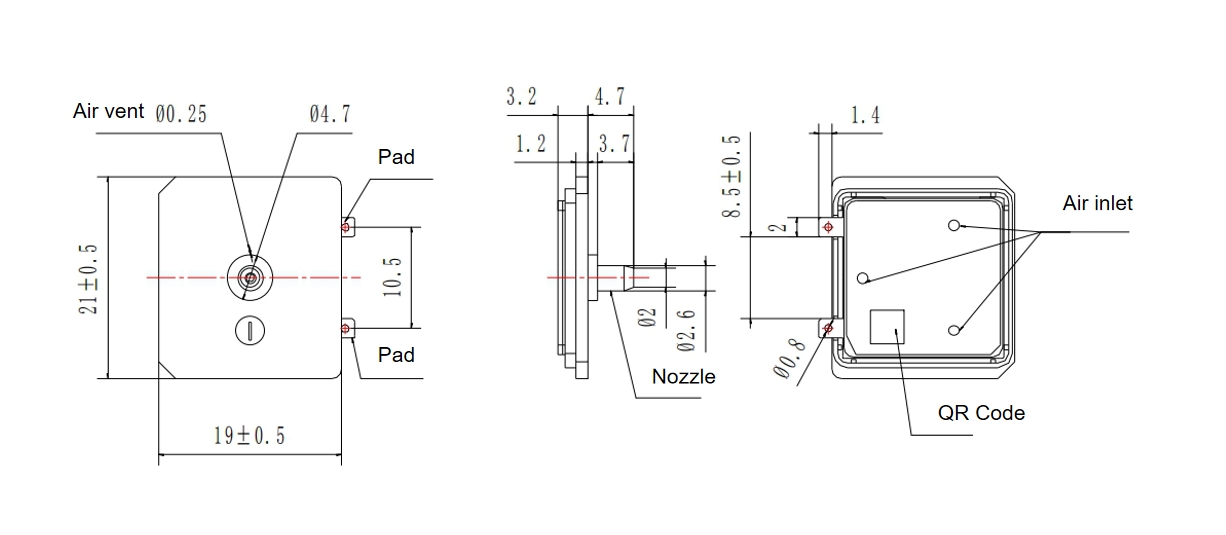

- Dimensions

- Specifications

Model

HQ0067-002

Drive frequency

24.5±2KHz

Pressure

40KPa

Flow rate

≥150mL/min

Outgassing time

≤10s

Noise

≤40dB

Operating voltage(MAX)

36Vpp

Power (output)

≤1.5W

Operating temperature

0°C~45°C


Applications

- Smart Blood Pressure Watch

- Slim portable blood pressure monitor
