ADW's range of ultrasonic flow sensors to be featured at ACE 2024

ACE 2024, the oldest and most professional exhibition in the U.S. water sector, will be held in Anaheim, California, from 10 to 13 June, and ADW flow series products will be presented on the site, inviting you to visit the site to exchange views.

ADW Booth Information

Time: 10 - 13 June 2024

Location: Anaheim, California, USA

Booth Number: 2479

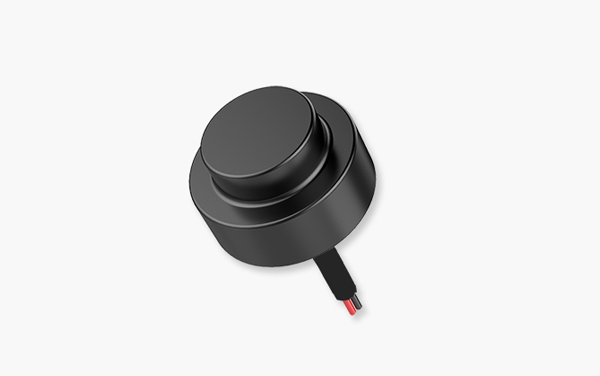

Lead-free Transducer for Ultrasonic Water Meter

Lead-free Transducer for Ultrasonic Water Meter is an environment-friendly flow transducer based on ADW’s lastest patented piezo material formular. The built-in ultrasonic transducer does not contain lead element and meets the current international advanced environmental standards. The liquid flow speed can be calculated by measuring the change of ultrasonic speed in the pipe, so that the liquid flow volume during a certain period of time can be calculated.

- Environmentally friendly piezo material: Lead-free

- Plastic housing material meets international partable drinking water standard NSF 61, WRAS,ect.

- High and low temperature resistance, high pressure resistance

 - High stability and reliability

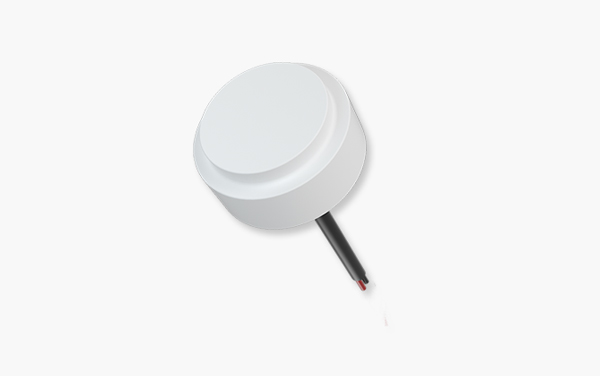

High temperature flow transducer

High temperature flow transducer is a liquid medium ultrasonic transducer, using high pressure resistant stainless steel, ceramics and other materials, highly sealed design, can be directly in contact with the liquid; at the same time to avoid the problem of unstable pressure and heat resistance, so that the product's performance is more stable, reduce the environmental factors on the product output and receive signal interference, effectively improve the product's response sensitivity. Applied in the ultrasonic heat meter, it can effectively improve the measurement accuracy of the instrument, and the product is also suitable for liquid flow measurement, and can be used as liquid flow transducer.

- High temperature resistance up to 240°C

- Long-term withstand 2.5MPa pressure

- Driving voltage as low as 5Vp-p, and through the European and American testing requirements, good consistency.

- Probe diameter of 16.8mm, widely used in ultrasonic heat meter, ultrasonic water meter, industrial equipment pipeline inside, etc.

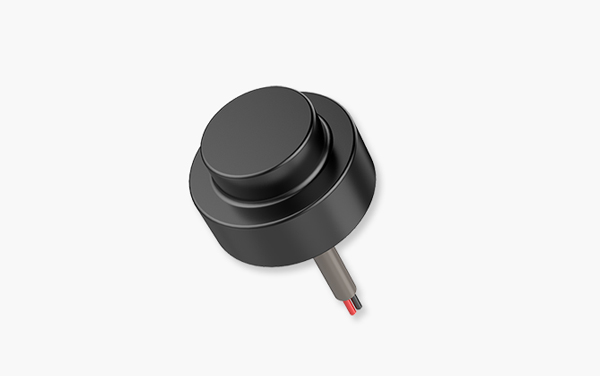

Ultrasonic Flow Transducer

Compared with similar competitors on the market, the ADW ultrasonic flow transducer has more stable electrical performance and stronger pressure resistance, high sensitivity, quickly reach the peak value to complete the vibration, the signal is easy to process, the application of the product can effectively improve the measurement accuracy of ultrasonic water meters.

-Stable electrical performance and high pressure resistance.

- Maximum withstand pressure up to 4.8MPa, long term withstand pressure up to 2.5MPa.

- Quick start-up, high sensitivity, easy signal processing.

- Small mounting diameter of 10mm

- Complies with national drinking water standards such as WRAS, ACS, KTW, etc.

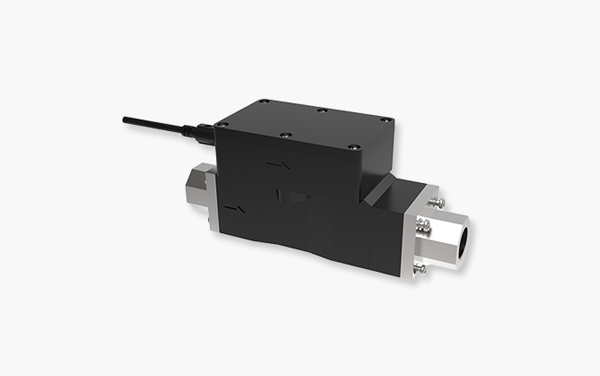

Ultrasonic Flow Sensor Module

ADW self-developed ultrasonic flow sensor module is an intelligent water management metering device based on ultrasonic time difference measurement, which can accurately monitor water flow and usage through real-time collection of water consumption data. The product supports cloud data uploading and downloading, remote manipulation and other expansion needs, which can provide data support for the performance evaluation and refinement of the water management system, and help the application and development of water management technology.

- One-piece structure, high measurement accuracy

- M-BUS communication protocol, digital signal output.

- The product shell is made of new environmentally friendly materials

- The internal sensor meets the national drinking water hygiene standards
